CWidget Class Reference

Abstract class all widgets need to inherit from. More...

#include <CUI.h>

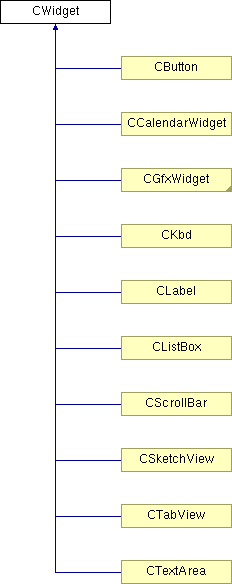

Inheritance diagram for CWidget::

List of all members.

Public Methods
	CWidget ()
	Widget constructor. More...
	~CWidget ()
	Widget destructor. More...
virtual int	getX ()
	Returns the x position of the widget. More...
virtual int	getY ()
	Returns the y position of the widget. More...
virtual void	setX (int x)
	Sets the x position of the widget. More...
virtual void	setY (int y)
	Sets the y position of the widget. More...
virtual int	update (CInputEvent *e)=0
	Update method - Recieves a CInputEvent, returns 1 if redraw is needed, 0 if not. More...
virtual void	draw (CGfxScreen *s)=0
	Draw method - The widget should draw itslelf to the passed CGfxScreen. More...
void	enable ()
	Enable widget. More...
void	disable ()
	Disable widget (dont draw, dont update). More...
void	setEnabled (bool enabled)
	Enable/disable widget. More...
bool	isEnabled ()
	Return true if widget is enabled. More...
Public Attributes
int	m_ID
	Widget ID (set by CPanel->add_widget). More...
CWidget *	m_next
	pointer to next widget - handled by panel so widgets should _never_ touch this. More...
Protected Attributes
int	m_xsize
	x size of widget. for internal widget use. More...
int	m_ysize
	y size of widget. for internal widget use. More...
int	m_x
	x coord of upper-left corner of widget. More...
int	m_y
	y coord of upper-left corner of widget. More...
bool	m_enabled
	enabled flag .. false, widget will effectivly not be on the panel. More...

---

Detailed Description

Abstract class all widgets need to inherit from.

Base class for widgets. All widgets need to inherit from this and impliment the draw and update methods

---

Constructor & Destructor Documentation

CWidget::CWidget (    )

Widget constructor.

CWidget::~CWidget (    )

Widget destructor.

---

Member Function Documentation

void CWidget::disable (    )

Disable widget (dont draw, dont update).

virtual void CWidget::draw (  CGfxScreen *    s )  [pure virtual]

Draw method - The widget should draw itslelf to the passed CGfxScreen. This will be called when the screen is being redrawn. The widget should draw itself using its m_x and m_y members as a starting co-ordinate. The drawing should be all on the passed CGfxScreen or the front lcd screen with libdj.TextScreen Reimplemented in CPersonView, CPersonEdit, CDateView, CEventView, CSketchView, CGfxWidget, CButton, CLabel, CKbd, CTabView, CListBox, CTextArea, CScrollBar, CCalendarWidget, and CNiceBars.

void CWidget::enable (    )

Enable widget.

int CWidget::getX (    )  [virtual]

Returns the x position of the widget.

int CWidget::getY (    )  [virtual]

Returns the y position of the widget.

bool CWidget::isEnabled (    )

Return true if widget is enabled.

void CWidget::setEnabled (  bool    enabled )

Enable/disable widget.

void CWidget::setX (  int    x )  [virtual]

Sets the x position of the widget.

void CWidget::setY (  int    y )  [virtual]

Sets the y position of the widget. Reimplemented in CScrollBar.

virtual int CWidget::update (  CInputEvent *    e )  [pure virtual]

Update method - Recieves a CInputEvent, returns 1 if redraw is needed, 0 if not. All keyboard and mouse (stylus) events are sent to this function. If the widget wants to trap the events, it can, and must return 1 if the screen needs to be redrawn and 0 if it does not (ie nothing happened or the action did not change the screen) Reimplemented in CSketchView, CGfxWidget, CButton, CLabel, CKbd, CTabView, CListBox, CTextArea, CScrollBar, and CCalendarWidget.

---

Member Data Documentation

bool CWidget::m_enabled [protected]

enabled flag .. false, widget will effectivly not be on the panel.

int CWidget::m_ID

Widget ID (set by CPanel->add_widget).

CWidget* CWidget::m_next

pointer to next widget - handled by panel so widgets should _never_ touch this.

int CWidget::m_x [protected]

x coord of upper-left corner of widget.

int CWidget::m_xsize [protected]

x size of widget. for internal widget use.

int CWidget::m_y [protected]

y coord of upper-left corner of widget.

int CWidget::m_ysize [protected]

y size of widget. for internal widget use.

---

The documentation for this class was generated from the following files:

• CUI.h
• CUI.cpp

---
